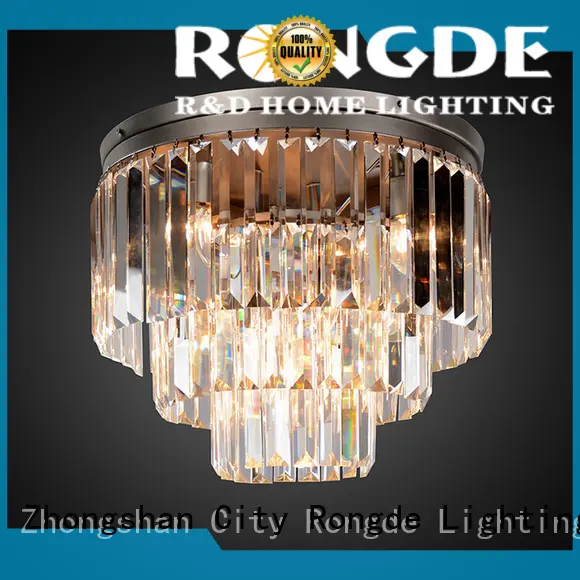

1. Rongde hanging ceiling lights has great quality. It is produced through a series of rigorous quality inspections which is in line with EMI, IEC, and RoHS standards.
2. light fixtures has the good virtues of hanging ceiling lights , and all proved that it is a optimal hanging light fixtures .
3. Such favourable properties as hanging ceiling lights make light fixtures highly marketable.
4. The long life of this product reduces the need for frequent replacement and even reduces carbon emissions in the long run.
Company Features
1. Zhongshan City Rongde Lighting Co. Ltd. offers one package service of hanging ceiling lights for markets both at home and abroad. We are a China-based enterprise that develops rapidly in this field.
2. Our technology takes the lead in the industry of light fixtures .
3. To establish a better company image, we keep sustainable development. For example, we use less packaging and less energy to reduce production costs. We constantly find ways to relieve and reduce our impact on the environment. We make progress in minimizing the use of energy and water and reducing production waste.
1. For hazardous area lighting products like LED EXPLOSION PROOF LIGHTS, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.
2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer in the passed 8 years, with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.
3. Now we have UL844(class 1 division 2) explosion proof certification, which means we are the only manufacturer who owns these qualifications at the same time.
4. By now we have a whole series LED EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting application.
The Standar of CESP LED Explosion proof Linear Lights
- CSA 250, UL1598, CSA 137, UL844
- IEC/EN 60079-0, IEC/EN 60079-1
- IEC/EN60079-15, IEC/EN60079-31
- Class 1 Div 1 , Group B,C,D
- Class 1 Div 2, Group A,B,C,D
- Class II Div 1, Group E,F,G
- Class II Div 2, Group E,F,G
- Class III, Ex d IIC T6
- Ex nA IIC T6
- Ex tb IIIC T6
Feature
Patent design combiningoutstandingappearance and excellentheat dissipation
High heat transmit heavy duty copper free housing ADC 12 aluminum
High LED Efficacy: 120 Lm/w
Universal Voltage: AC100-277V, AC200-480V (50/60Hz)
Wide ambient temp range from - 40°C to + 55 °C
Taiwan Meanwell series , UL certified
Sur-face treatment-power painted, salt resistant
Shock and vibration resistant tempered glass, super clear 95% light transmit rate
Parameter
Item | CES-XT60 | CES-XT120(D) |
Rated Power | 60W | 120W |
Input Voltage | AC100-277V, AC200-480V | |
Input Frequency | 50/60Hz | |
Power Factor | >0.95 | |
Surge Protection | 4KV | |
Lumen | 120lm/per watt | |
Beam Angle | 8°/15°/36°/60°/90°/120° | |
CCT
| 5500K-6000K | |
CRI | >70 | |
Operating Temperature | -40℃~55℃ | |
T-Code | T4-T6 | |
Housing Material | heavy duty copper free ADC12 aluminum alloy | |
Tempered glass | 6mm thickness | |
Mounting Opitional | U-Bracket (Wall, Ceiling and Floor) Stanchion Mount Pole Mount Pendant Mount | |
IP Rate | IP66 | |
IK Rate | IK10 | |
Warranty | 5 years | |
Size | 596*126*57mm | 1192*126*112mm |
Weight | 8kg | 13kg |
Item | CES-XT30 | CES-XT60A(D) |
Rated Power | 30W | 60W |
Input Voltage | AC100-277V, AC200-480V | |
Input Frequency | 50/60Hz | |
Power Factor | >0.95 | |
Surge Protection | 4KV | |
Lumen | 120lm/per watt | |
Beam Angle | 8°/15°/36°/60°/90°/120° | |
CCT
| 5500K-6000K | |
CRI | >70 | |
Operating Temperature | -40℃~55℃ | |
T-Code | T4-T6 | |
Housing Material | heavy duty copper free ADC12 aluminum alloy | |
Tempered glass | 6mm thickness | |
Mounting Opitional | U-Bracket (Wall, Ceiling and Floor) Stanchion Mount Pole Mount Pendant Mount | |
IP Rate | IP66 | |
IK Rate | IK10 | |
Warranty | 5 years | |
Size | 607*78*107mm | 1214*78*112mm |
Weight | 5kg | 9kg |
Application
Refineries /Oil Drilling Platforms / Military bases/ manufacturing facilities
Chemical Processing Facility/ Oilfield operations/Food processing plants
Petrochemical Processing Facility /paint spray booths/marine
About CESP
CESP Strive to High Quality Patent Product in Military & Industry Areas, is the Largest OEM/ODM Supplier for Explosion Proof Lighting Solution of China and the 1st Company in China to Be Certify for Hazardous Location LED Lighting Fixture By UL & CUL. Existing Products with Complete Certification, Including UL, CUL, DLC, ETL, CETL, CNEX, CE, ROHS, ATEX, SAA, C-TICK , Ect.
Abundant Financial and Exquisite Technology is to Providing Technical Services and Complete Security Solutions, Free R&D and Free Technical Services, Quickly Response that Just Only 15 Days to Design, 30 Days to Die Sinking, 1 Month Can be Done for Class I Div 2 Certification, 3 Month Can be Done for Class I Div 1 Certification.
